PQWT-TCM Water Survey Equipment
Advanced borehole long-range underground water detector with detection depths of 150m, 300m, and 500m
Customer Feedback
We welcome your feedback and experience sharing!
Product Overview
PQWT-TCM Series Geophysical Water Survey Detector utilizes natural electric field sources as its working principle. The system operates based on resistivity contrasts between underground rocks, minerals, and groundwater aquifers.
By measuring natural electric field components from the earth's surface to horizontal axis X and subsurface vertical axis Z across multiple frequencies, the instrument analyzes variations in magnetic energy to identify geological anomalies. This electrical prospecting method measures both electric field components and electromagnetic energy variations.
Collected data is automatically processed through the instrument's built-in calculation functions and presented as detailed curves and profiles. These visual representations clearly display subsurface formation structures and characteristics, enabling rapid identification of faults, contacts, fractures, linear structures, joints, cavities, and aquifers.
Key Features
- Dual Mode Operation: Long-range search combined with natural electric field frequency survey
- Dynamic Display: Real-time data collection and immediate results display on the host machine
- Automatic Mapping: One-key automatic generation of curve maps and profile maps
- Data Storage: Capacity to store geological curve maps and profile maps for over 999 survey lines, facilitating exploration report preparation
Technical Specifications
| Warranty | 2 years |
| Type | PQWT-TCM Underground Water Detector |
| Customized Support | OEM |
| Place of Origin | China |
| Brand Name | PQWT |
| Model Number | PQWT-TCM150/TCM300/TCM500 |
| Product Name | PQWT-TCM Long Range Water Detector |
| Detection Depth | 150m/300m/500m |
| Channels | 4/6/8 channels |
| Resolution | 0.001mV |
| Electrode | 2 pieces |
| Application | Underground Water Detection |
| Usage | Borehole Drilling, Water Supply, Farm Irrigation |
| Power Supply | Rechargeable Lithium Battery |

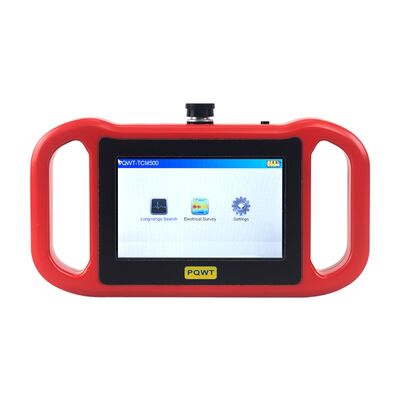

| Display | 5.0 inch HD LCD |

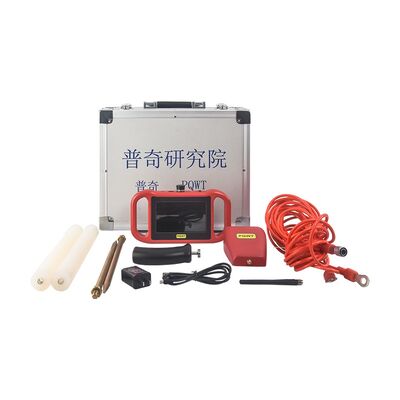

Packaging & Delivery

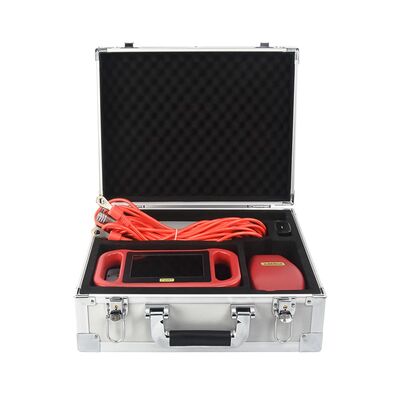

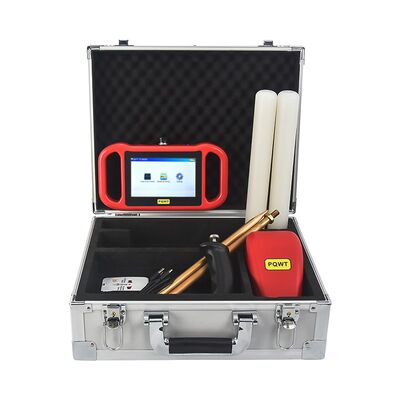

Aluminum specialized flight case + strong carton + corner guard protection
Custom packaging and logo options available - share your requirements with us!
Company Profile
Hunan Puqi Geologic Exploration Equipment Institute is a professional Chinese institution specializing in the research, development, manufacturing, and sales of advanced geological exploration equipment. Our product range includes pipe water leak detectors, leakage automatic analyzers, geophysical prospecting underground water detectors, cavity detectors, mine locators, dam piping detectors, borehole inspection cameras, and pipeline detectors.
With over 200 staff members including 16 senior engineers and 49 intermediate engineers, Puqi has focused for years on hydrogeological exploration, intelligent data-capture technology, and specialized technical applications. We have successfully completed more than 65 major projects including national ministries, Sino-foreign cooperation initiatives, and significant scientific research programs.
Our achievements include numerous national research awards and over 117 national patents. We maintain long-term cooperative relationships with scientific research institutes in Germany, US, Australia, Hong Kong, and other countries and regions. Multiple geological data laboratories established across China utilize our proprietary software for continuous data collection, analysis, and detection across diverse geological structures, creating comprehensive differential databases for various geological areas.
Frequently Asked Questions
Q1: What payment methods do you support?
A: We support Wire Transfer, Western Union, PayPal, and Alibaba orders.
Q2: What shipment methods do you use and what is the delivery time?
A: We utilize DHL/FedEx/UPS/TNT/EMS Air Express and sea shipping. Delivery time is within 7 working days for in-stock items.
Q3: What is your after-sales service policy?
A: 2-year product guarantee with maintenance of core components. For detailed information, please contact our online sales team.
Q4: I have other questions to discuss.
A: Please contact our online sales team by clicking "Chat Now" or sending an inquiry. Your questions will receive prompt attention and response!
